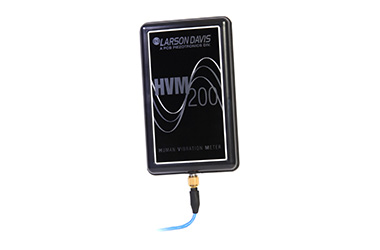

The HVM200 is a small, rugged vibration meter with built-in Wi-Fi that can be used to measure hand-arm, whole body, and general vibration. It includes the metrics and frequency weightings needed to measure human vibration. This 3-channel meter includes measurement filters that are compliant to ISO 8041:2021 and are designed to measure per ISO 2631-1, 2, & 5 and ISO 5349 in support of the American Conference of Governmental Industrial Hygienists (ACGIH) Threshold Limit Values (TLVs) and Directive 2002/44/EC. This makes the HVM200 an ideal choice for an instrument used to demonstrate compliance with human vibration requirements and regulations worldwide.
| Measured Values | |
|---|---|
| Metrics by mode: Vibration Hand-arm Whole-body | RMS, Peak, Min, Max (x, y, z & Σ) RMS, Peak, Min, MTVV, A(1), A(2), A(4), A(8) (x, y, z & Σ) RMS, Peak, Min, MTVV, A(8), A(8)Exp, EP, VDV (x, y, z & Σ) |
| Measurement Units | m/s2, cm/s2, ft/s2, in/s2, g, dB |
| Popular Sensors | |
|---|---|
| SEN020 | Triaxial accelerometer, 0.1 mV/(m/s2), 10-32 fem thread |
| SEN026 | Triaxial accelerometer, 1 mV/(m/s2), for ADP063 |
| SEN027 | Seat pad with triaxial accelerometer, 10 mV/(m/s2) |
| SEN040F | Triaxial accelerometer, 0.1 mV/(m/s2), for ADP080A, 81A and 82A |
| SEN041F | Triaxial accelerometer, 1 mV/(m/s2), for ADP080A, 81A and 82A |
Leverage the power of wireless portable electronics to make measuring human vibration easy. Our free app, available on Google Play™ and the Apple App Store, can be used to improve the way measurements are made by using portable electronics to control the measurement and view data.
Determine the frequency content of measured vibration levels by configuring the HVM200 with the optional IEC 61260 class 1 compliant 1/1 and 1/3 octave filters (0.5 Hz to 2000 Hz and 0.4 Hz to 2500 Hz respectively). Data can then be transferred for reporting or further analysis using USB, Wi-Fi or a removable micro SD memory card.
Because the HVM200 supports a large removable micro SD memory (up to 32 GB), storing and archiving the sampled time data for all three channels is now possible. Data is stored in a 24-bit format, and files can be read with tools such as MATLAB® or GNU Octave for additional processing.
